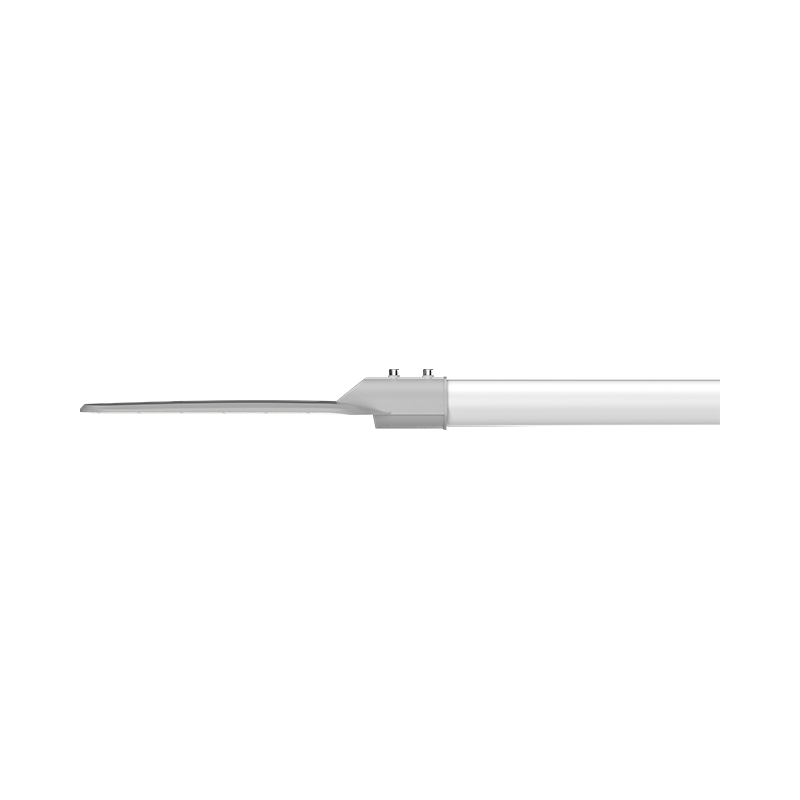

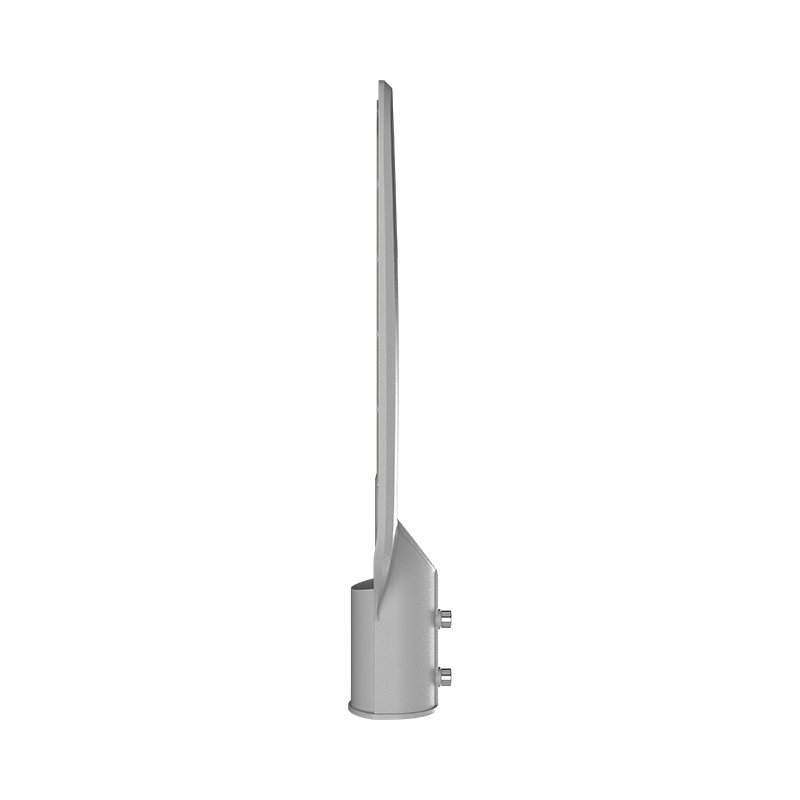

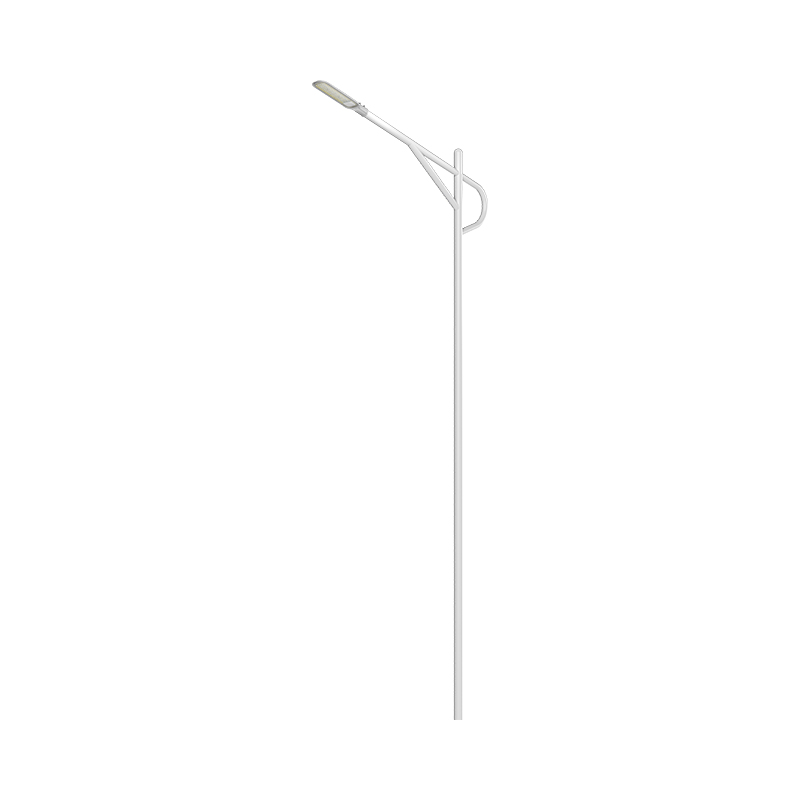

S4 Low Harmonic Street Light Wholesale

S4 Low Harmonic Street Light

S4 Low Harmonic Street Light

  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
  • S4 Low Harmonic Street Light
Quote Now

Specification

Low Harmonic Street Light typically refers to a type of street light designed to have a reduced impact on the harmonic distortion of the electrical power system. Harmonic distortion occurs when the normal sinusoidal waveform of the electrical voltage or current gets distorted due to the presence of non-linear loads, such as electronic devices and lighting systems.

Low harmonic street lights are engineered to minimize the generation of harmonics in the electrical system. They often incorporate components that help mitigate harmonic distortion, such as filters and power factor correction circuits.

Low harmonic street lights are designed to be more compatible with the surrounding electrical infrastructure and other connected devices. This can help prevent disturbances or disruptions caused by harmonics to other equipment in the vicinity.

Lamp body size Aluminum substrate size Aluminum substrate thickness Nominal power Operating voltage PF Number of lamp beads LM/W Withstand pressure Swell Strobe Warranty Inner box size Carton size Number of boxes
364*145*64mm 86*218 1.0MM S4-50W 200-260V ≥0.9 72pcs 100 ≥1500V 3000V Strobe 2 years 151*70*370MM 380*315*385MM 10/carton
486*165*64mm 106*327 1.0MM S4-100W 200-260V ≥0.9 144pcs 100 ≥1500V 3000V Strobe 2 years 171*70*492MM 380*355*510MM 10/carton
544*205*74mm 143*374 1.2MM S4-150W 200-260V ≥0.9 222pcs 100 ≥1500V 3000V Strobe 2 years 211*80*550MM 440*420*565MM 10/carton
622*235*74MM 165*424 1.2MM S4-200W 200-260V ≥0.9 320pcs 100 ≥1500V 3000V Strobe 2 years 241*80*628MM 420*250*645MM 5/carton

About Company


Ningbo Ounuo Lighting Technology Co., Ltd.

Ningbo Ounuo Lighting Technology Co., Ltd.

We are a professional China S4 Low Harmonic Street Light Suppliers and Wholesale S4 Low Harmonic Street Light Factory. Our products have been exported to many countries from Europe to South America, Middle East, Africa and Southeast Asia, and we hope to sell to all over the world in the future.Welcome friends from all walks of life to visit our factory, guidance and business negotiations.

Take A Factory Tour   >>

Contact Us

Related Products

Qualification certificate

Latest News

All ArticlesNingbo Ounuo Lighting Technology Co., Ltd.

Industry Knowledge

What is the power factor of this product and what is its impact on the grid load?
Low-harmonic street lights have a power factor (PF) of up to ≥0.9, a characteristic that marks their excellent energy efficiency in power systems. Power factor is a crucial parameter in the power system, which measures the impact of electrical equipment on the grid load.
Power factor is the ratio of useful power to apparent power, and a high power factor indicates that a larger proportion of the total electrical energy is actually used to perform work. By reducing the phase difference between actual useful power and apparent power, this street light achieves a more coordinated state of current and voltage, thereby reducing energy losses in the grid's transmission and distribution of electrical energy. This has a positive effect on improving the efficiency of the power grid and reducing waste of electrical energy, and is a major driving force for green lighting.
In power systems, energy losses are mainly reflected in the transmission and distribution process caused by the power factor difference between current and voltage. A low power factor causes more energy loss, while a high power factor reduces this loss. By improving the coordination of current and voltage, low-harmonic street lights reduce power factor differences in the power grid, effectively reducing grid losses and improving the overall efficiency of the power grid.
Furthermore, the characteristics of high power factor have a positive impact on the stability of the power grid. By reducing the phase difference between current and voltage, low harmonic street lights help reduce grid voltage drops. This is crucial to maintaining the stability of the power grid, because a smaller grid voltage drop means that the power system is easier to maintain in a normal operating state, reducing the risk of power system instability caused by voltage fluctuations.
A high power factor also provides the grid with greater capacity, allowing it to utilize transmission lines and substation equipment more efficiently. This means that the power grid can better cope with the power demand under different load conditions, improving the adaptability and robustness of the power grid. Products with high power factors help increase the capacity of the power grid so that it can better adapt to changing power demands and ensure reliable operation of the power system.
