DOB 1MM Aluminum Substrate 100-265V Street Light Wholesale

DOB 1MM Aluminum Substrate 100-265V Street Light

DOB 1MM Aluminum Substrate 100-265V Street Light

  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
  • DOB 1MM Aluminum Substrate 100-265V Street Light
Quote Now

Specification

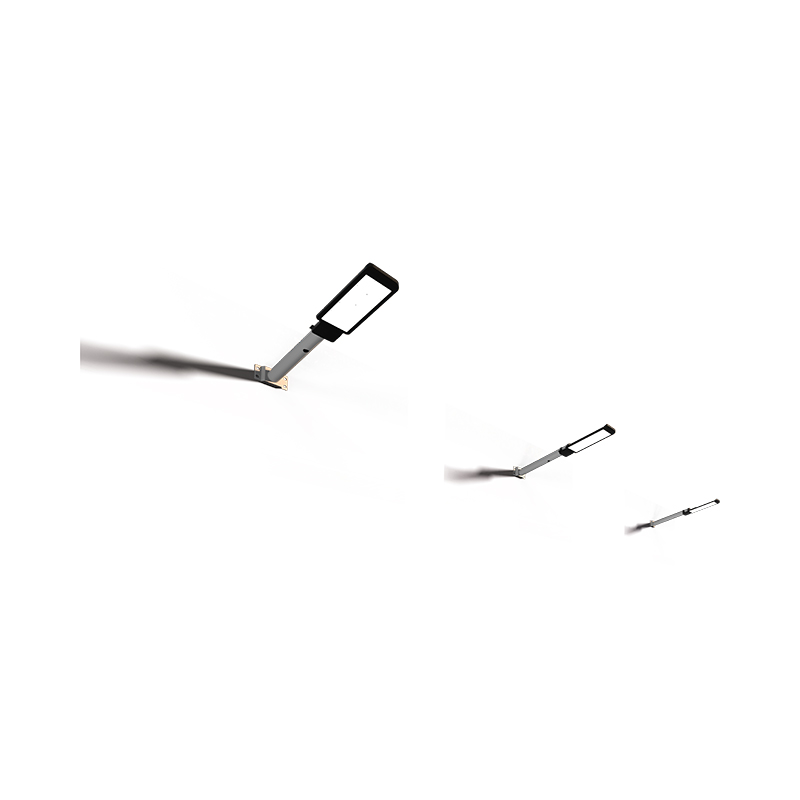

The 1MM Aluminum Substrate 100-265V Street Light is a high-quality street light designed for outdoor lighting applications. It features a sturdy aluminum substrate construction to ensure durability and longevity in various weather conditions.

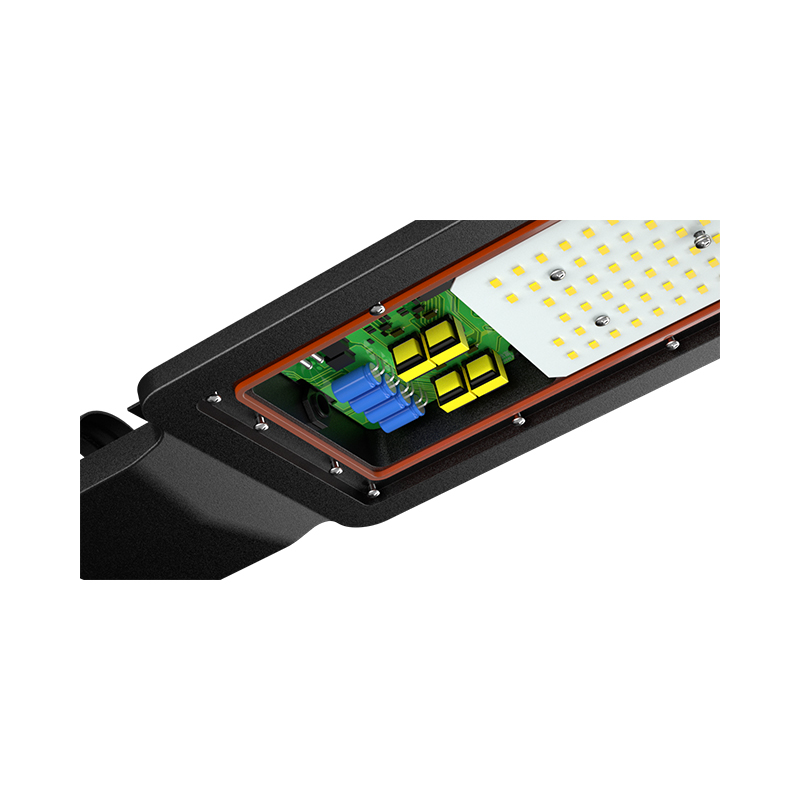

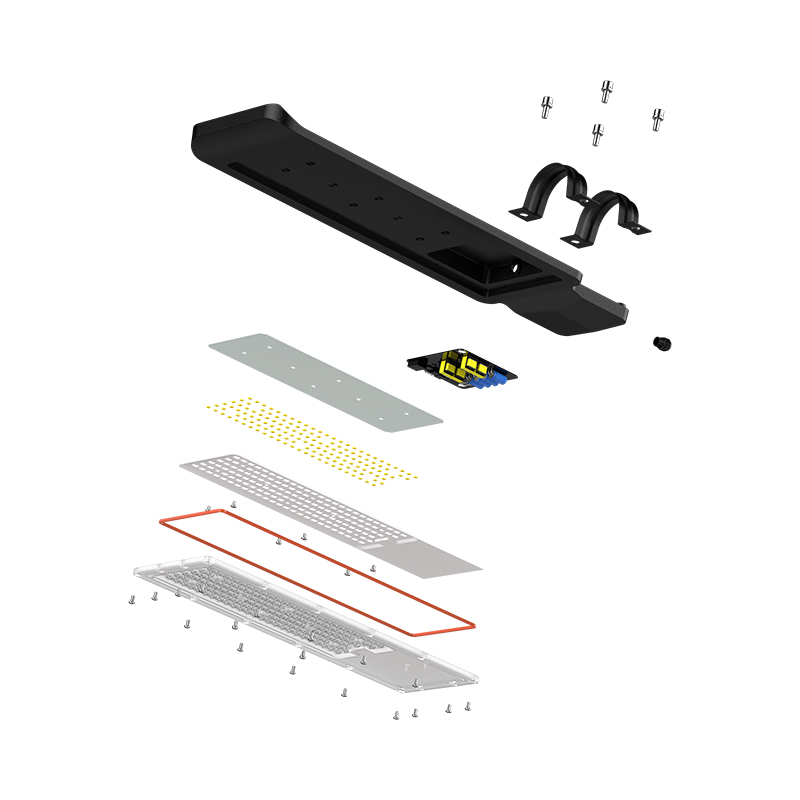

The street light is suitable for a wide voltage range of 100-265V, allowing it to be used in different power supply systems. This versatility makes it convenient for installation in various locations. With a 1MM aluminum substrate, this street light offers efficient heat dissipation, effectively reducing the risk of overheating and prolonging the lifespan of the light source. The aluminum material also provides excellent resistance to corrosion, ensuring the street light's performance is not compromised in outdoor environments.
Lamp body size Aluminum substrate thickness Nominal power Actual power Operating voltage PF Number of lamp beads LM/W Withstand pressure Swell Strobe Warranty Inner box size Carton size Number of boxes

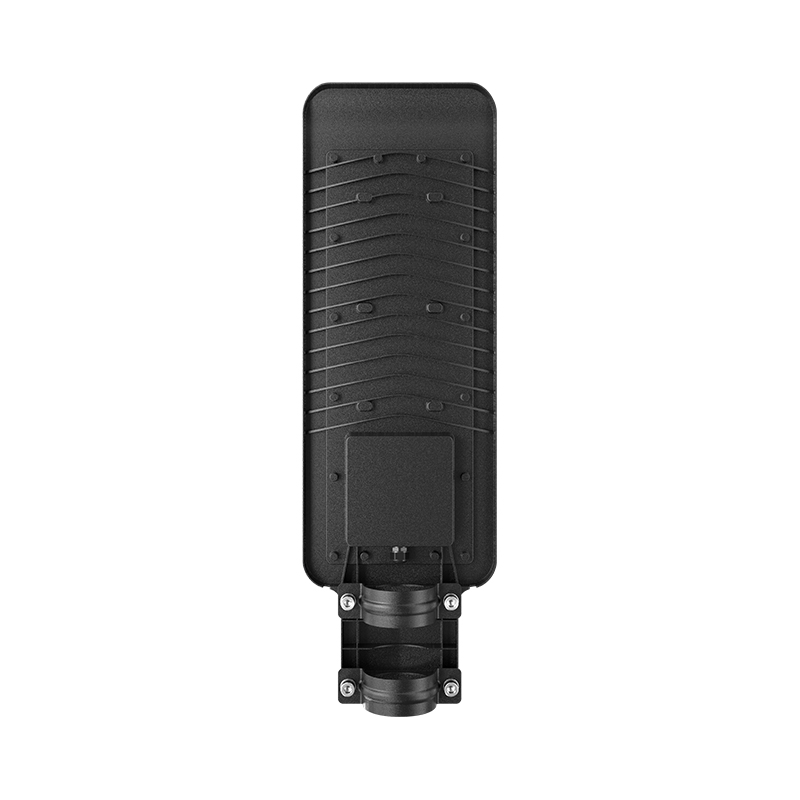

364*145*64mm 1.0MM 50W 45W 100-265V ≥0.9 72pcs 100-110 ≥1500V 4000V Strobe 2 years 143*59*445MM 620*465*305MM 20/carton
486*165*64mm 1.0MM 100W 90W 100-265V ≥0.9 144pcs 100-110 ≥1500V 4000V Strobe 2 years 156*69*498MM 720*515*330MM 20/carton

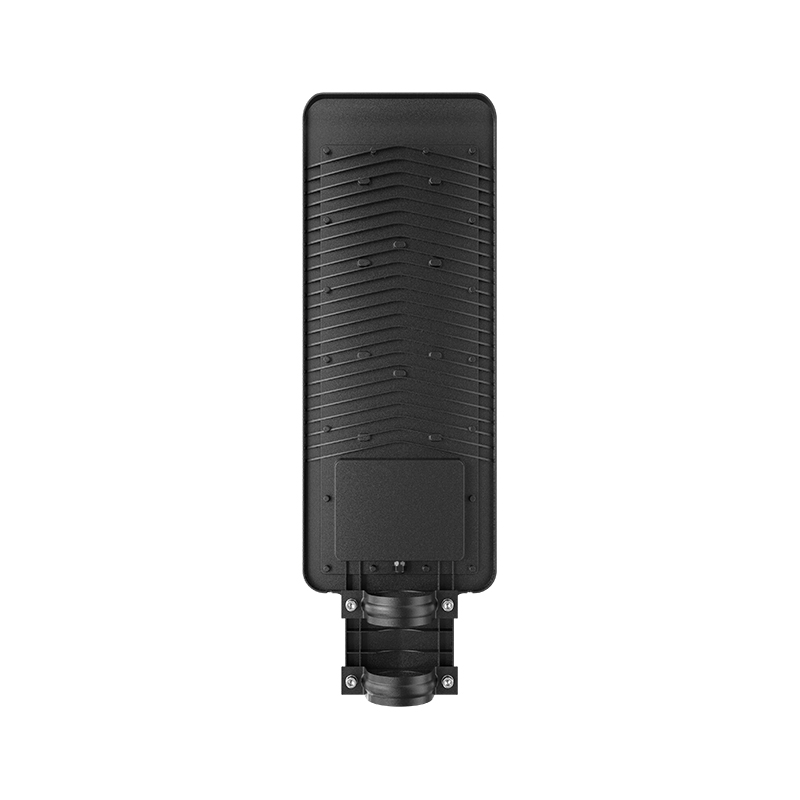

544*205*74mm 1.0MM 150W 135W 100-265V ≥0.9 216pcs 100-110 ≥1500V 4000V Strobe 2 years 189*67*574MM 595*355*400MM 10/carton
622*235*74MM 1.0MM 200W 180W 100-265V ≥0.9 288pcs 100-110 ≥1500V 4000V Strobe 2 years 216*67*686MM 705*355*455MM 10/carton

About Company


Ningbo Ounuo Lighting Technology Co., Ltd.

Ningbo Ounuo Lighting Technology Co., Ltd.

We are a professional China DOB 1MM Aluminum Substrate 100-265V Street Light Suppliers and Wholesale DOB 1MM Aluminum Substrate 100-265V Street Light Factory. Our products have been exported to many countries from Europe to South America, Middle East, Africa and Southeast Asia, and we hope to sell to all over the world in the future.Welcome friends from all walks of life to visit our factory, guidance and business negotiations.

Take A Factory Tour   >>

Contact Us

Related Products

Qualification certificate

Latest News

All ArticlesNingbo Ounuo Lighting Technology Co., Ltd.

Industry Knowledge

How does the luminous flux (LM/W) of street lights affect the lighting effect?
Luminous flux (LM/W), as an important parameter in the field of lighting, plays a vital role in the design and selection of Aluminum Substrate Street Light. It represents the measurement of light produced per unit power and directly affects the performance and effectiveness of the lighting system.
Luminous flux is a concept related to human visual perception, which is used to quantify the total amount of light emitted by a light source. The unit lumen (LM) represents the total amount of light, while the unit watt (W) represents energy consumption. Therefore, the unit of luminous flux is lumens per watt (LM/W), which is the amount of light produced per watt of energy consumed. This indicator not only reflects the brightness of the light source, but is also directly related to energy efficiency.
For street lights, the increase in luminous flux brings many benefits. First, it significantly increases lighting brightness. One of the main goals of street lights is to provide enough light to ensure good visibility of pedestrians and vehicles at night or in low-light conditions. Street lights with high luminous flux can illuminate the surrounding environment more powerfully, allowing people to see surrounding objects and roads more clearly.
Additionally, increases in luminous flux are often accompanied by greater energy efficiency. Energy efficiency is a measure of how efficiently energy is used, that is, less energy is consumed while providing the same or more light. This is critical to reducing the operating costs of lighting systems, while also contributing to sustainability goals and reducing over-reliance on energy resources.
High-flux streetlights also improve visibility in nighttime environments and increase overall safety. On urban and suburban roads, adequate lighting is an important factor in preventing accidents and crime. Increased luminous flux means wider and even lighting distribution, reducing dark areas and shadows, thereby improving pedestrian and driver perception.
